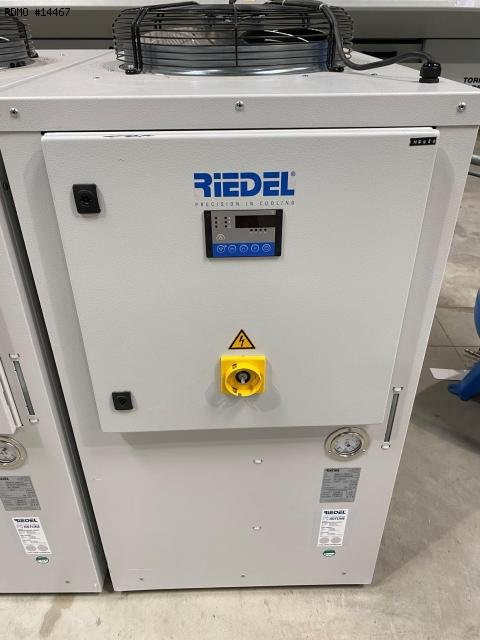

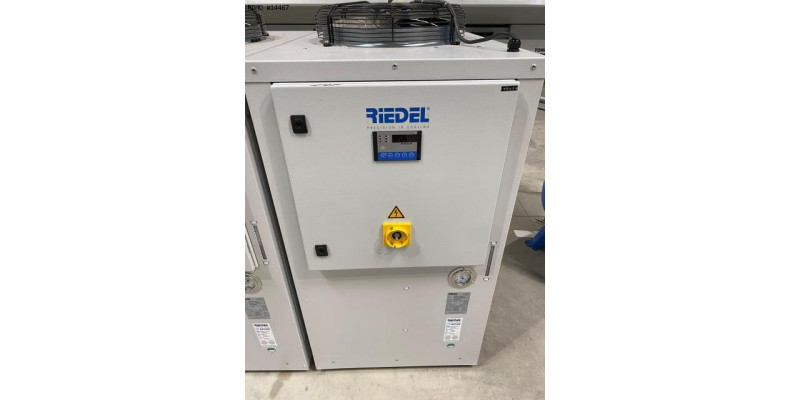

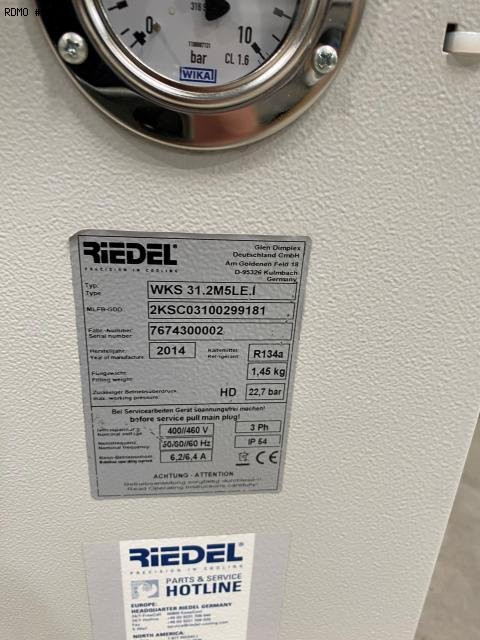

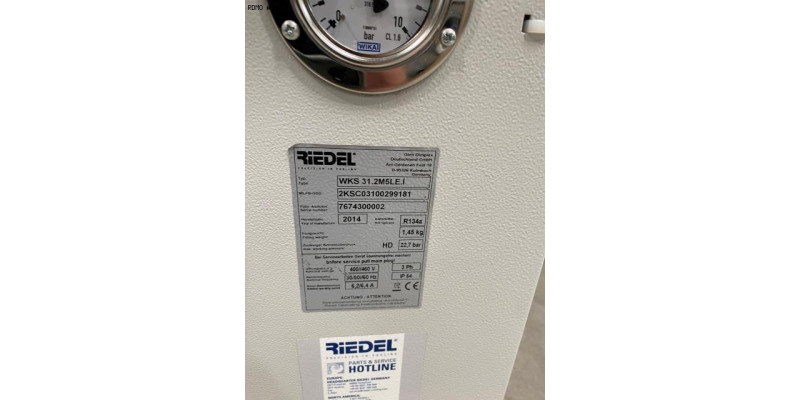

Riedel WKS 31

SC 31
Net cooling capacity: kW 3.9
Pump power loss: kW 0.9
Refrigerant type : R134a
Cooling liquid : Water
Ambient temperature : °C +15 to +45
Coolant outlet temperature : °C +8 to +25
Set point stability : K ±1
Circulating coolant quantity: m³/h 0.4
Free pump pressure bar 3 5 - 6
Tank volume: l 40
Sound pressure level: dB(A) 54
Supply voltage: Ph/V/Hz 3/400/50
Power input: kW 2,6
Maximum power input: A 5.2
Water connections Rp ¾'
Weight (net) : kg 105
Dimensions width x height x depth : mm 540 x 1 050 x 700
